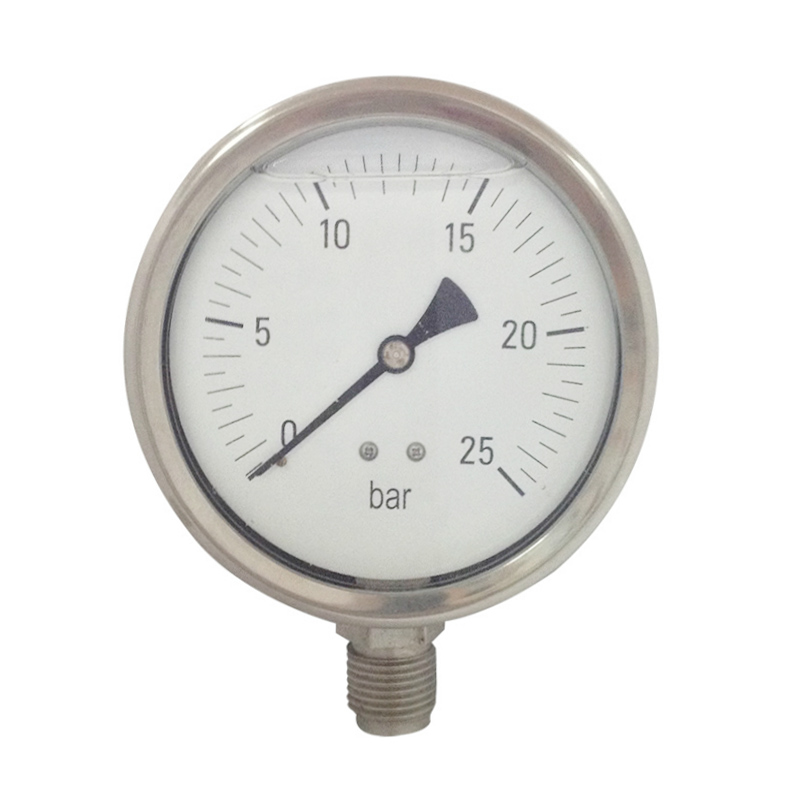

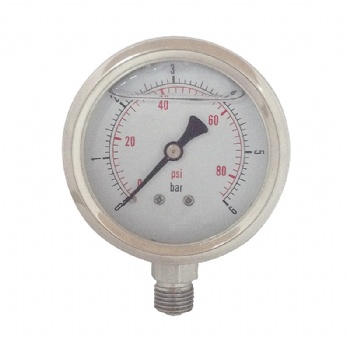

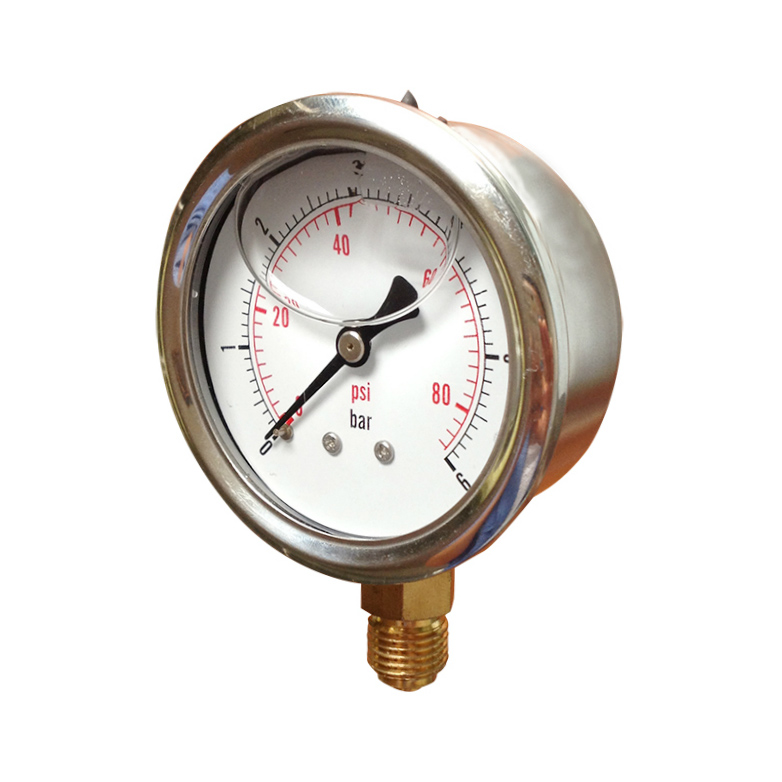

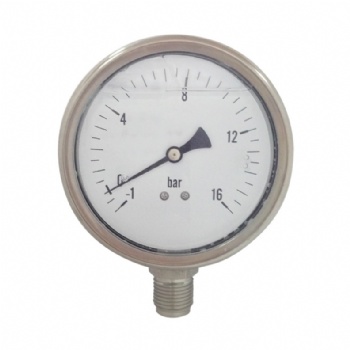

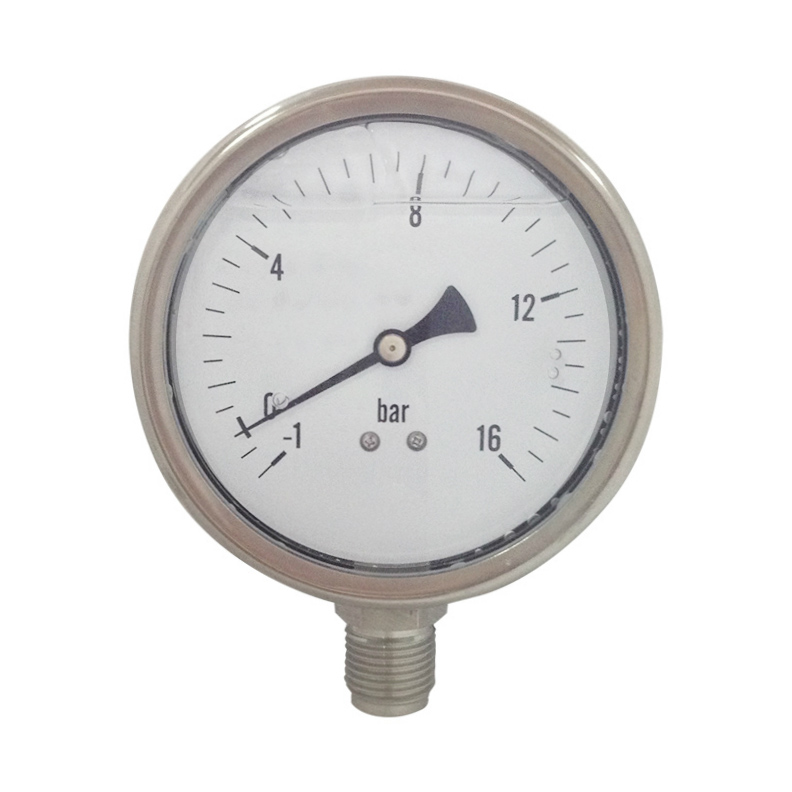

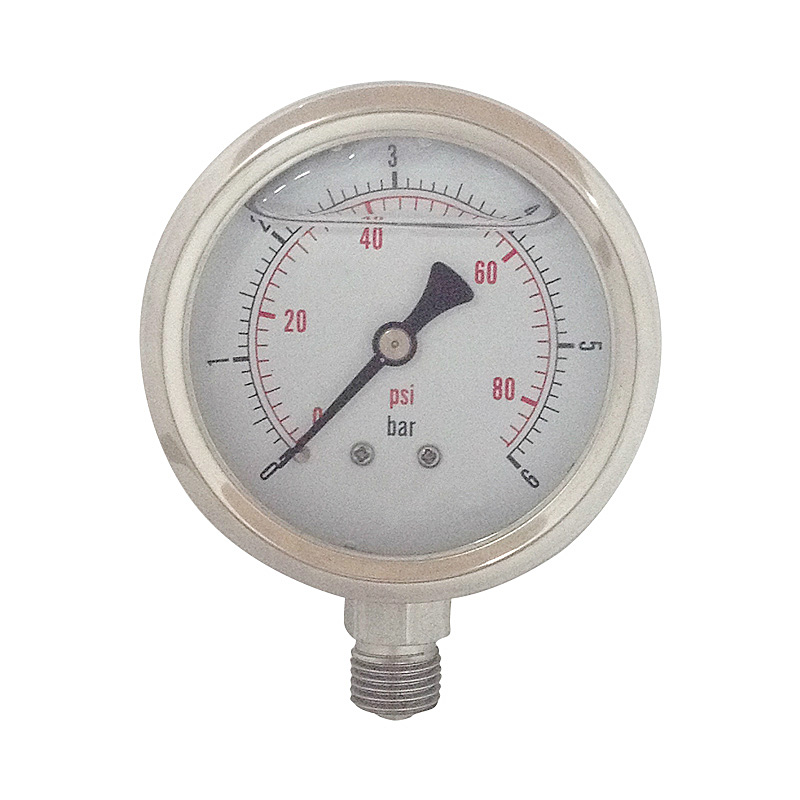

Liquid Filled Pressure Gauge

    Brand: Hygauge
    Application: Process industry
    Form: Bottom connection or back connection
    Case: SS304
DETAILS

Applications
* Intended for adverse service conditions where pulsating or vibration exists
* Process industry
* Suitable for gaseous or liquid media that will not obstruct the pressure system

Features
* Design EN 837-1
* Dial: 1.5"(40mm), 2"(50mm), 3"(80mm), 4"(100mm) and 6"(150mm)
  white aluminium dials with black and red markings
* Case material: 304 stainless steel, black steel
* Range:  Normal0…0.6bar to 0…1000bar
               Vacuum: -76cmHg…0
          Compound: -76cmHg..0…35bar
                    Scale: bar, psi, kg/cm2, kPa, MPa, etc.
* Connection: 1/8”,1/4”, 3/8”,1/2”  NPT, BSP, BSPT,etc.
* Window: Polycarbonate window, armored glass or safety glass
* Pointer: Black aluminium, fixed or adjustable
* Bourdon tube: copper alloy
* Socket:: brass, chromed brass
* Glycerine-filled or dry with filling hole
* Crimp ring or bayonet bezel
* Restrictor in connection

Accuracy class
* 1.5", 2" : ± 2.0%
* 2.5" & 3": ± 1.6%
* 4" & 6”: ± 1.0%

* Please indicate the parameter when you send an inquiry.


Product Specifications
  No
Item
Data
1
Name
Liquid filled pressure gauge
2
Range
Normal: 0…0.6bar to 0…1000bar, Vacuum: -76cmHg…0, Compound: -76cmHg..0…35bar
3
Case material
Stainless steel 304
4
Socket
Brass, stainless steel 304 or stainless steel 316
5
Connection form
Bottom or back connection
6
Connection
1/8”,1/4”, 3/8”,1/2”  NPT, BSP, BSPT,etc.


pressure gauge collection-2.jpeg
Company Profile
Our Certifications
Our Advantages
Quality Guarantee:
We have got ISO9001 certification
We have CE certificate
We have good technology and experience, we also have the strict Quality Control Department to control the quality

Our Service:
Free sample is available
Special sample according to clients requirement is available
Fastest professional response is for our clients

Delivery Term:
10~35 Days after getting deposit

Payment Term:
L/C (100% L/C at sight)
T/T (30% T/T in advance, 70% balance before delivery)
Product Packaging
FAQ:
-When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price. Please call us or tell us in
your email so that we will regard your inquiry priority.

-How can I get a sample to check your quality?
After price confirmation, you can require for free sample to check our quality. Normally it takes one week to make a sample. We only provide 1 pc free sample. More samples need to be paid. And the clients need to pay the sample freight cost.

-How can I pay the sample fee and freight cost?
T/T or West Union is available.

-Can you design for us?
OEM is available.

-What is the lead time?
It depends on the order quantity and the season you place the order. The normal delivery time is about 10-35 days.

-How about I had never buy product from China?
We’ll guide you step by step, we can help to calculate all the possible cost for you. Our shipping forwarder will also insist you on your port side.
